Hey there! As a welding electrode supplier, I often get asked, "Which welding electrodes are suitable for AC welding?" Well, let's dive right into it and explore this topic in detail.
AC welding, or alternating current welding, has its own unique characteristics. Unlike DC (direct current) welding, AC welding current periodically reverses its direction. This feature brings both advantages and challenges when it comes to choosing the right welding electrodes.
E6013 Electrodes
One of the most popular choices for AC welding is the E6013 electrode. These electrodes are known for their versatility. They can be used on a variety of metals, including mild steel. The coating on E6013 electrodes contains a mixture of rutile and other minerals. This coating helps to create a stable arc even when using AC power.
The arc with E6013 electrodes is relatively soft and easy to control. It produces a smooth weld bead with minimal spatter. This makes it a great option for beginners who are just getting started with AC welding. Whether you're working on small DIY projects or light industrial applications, E6013 electrodes can get the job done. For example, if you're welding a small metal frame for a garden shed, these electrodes will provide a clean and reliable weld.
E7018 Electrodes
Another excellent choice for AC welding is the E7018 electrode. These electrodes are often referred to as "low - hydrogen" electrodes. They are designed to produce high - quality, strong welds. The coating on E7018 electrodes contains a low amount of hydrogen, which helps to prevent weld defects such as porosity and cracking.
When using E7018 electrodes with AC, you'll notice that they require a bit more skill to operate compared to E6013. However, the results are well worth the effort. The welds produced by E7018 electrodes have high tensile strength and good ductility. They are commonly used in structural welding applications, like building bridges or constructing large metal structures. If you're involved in a project where the strength and integrity of the weld are crucial, E7018 electrodes are a top pick.
E6010 Electrodes
E6010 electrodes are also suitable for AC welding, although they are more commonly associated with DC welding. These electrodes have a cellulose - based coating. The cellulose coating creates a deep - penetrating arc, which is great for welding thick materials.
When using E6010 electrodes with AC, they can provide a strong and reliable weld on thick steel plates. The arc is very forceful, which helps to clean the base metal as it welds. However, they do produce more spatter compared to E6013 and E7018 electrodes. So, you'll need to take some extra precautions to clean up after welding. For instance, if you're welding a thick metal plate for a heavy - duty machinery part, E6010 electrodes can give you the deep penetration you need.
Specialized Electrodes for Specific Applications
In addition to the commonly used electrodes, there are also some specialized electrodes that can be used for AC welding in specific situations.

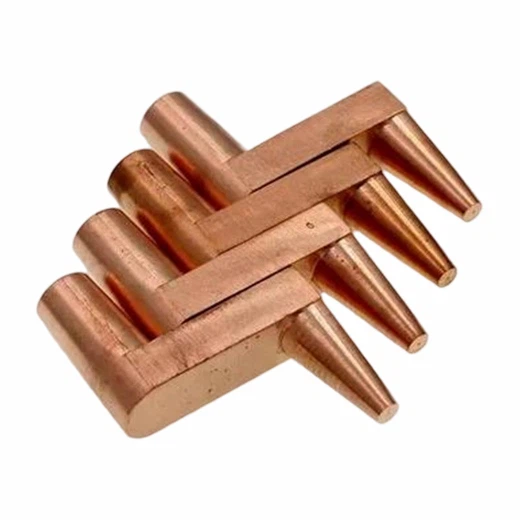

Spot Welding Curved Electrode
For spot welding applications, the Spot Welding Curved Electrode is a great option. These electrodes are designed to provide a concentrated heat source at the spot where the weld is needed. They are often used in automotive manufacturing, where precise and strong spot welds are required. The curved shape of the electrode allows for better access to hard - to - reach areas, making it ideal for welding components in tight spaces.
Electrode Grip
The Electrode Grip is an important accessory when it comes to AC welding. It holds the electrode securely in place and allows for easy handling during the welding process. A good electrode grip ensures a stable connection between the electrode and the welding machine, which is essential for maintaining a consistent arc. Whether you're using E6013, E7018, or any other type of electrode, a reliable electrode grip can make your welding experience much more comfortable and efficient.
Resistance Welding Electrode Arm
The Resistance Welding Electrode Arm is another crucial component for AC welding, especially in resistance welding applications. This arm helps to position the electrode accurately and apply the right amount of pressure during the welding process. It is commonly used in industries where high - volume welding is required, such as the electronics and appliance manufacturing industries.
Factors to Consider When Choosing Electrodes for AC Welding
When selecting the right welding electrodes for AC welding, there are several factors you need to take into account.
Metal Type
The type of metal you're welding is one of the most important factors. Different metals have different properties, and you need to choose an electrode that is compatible with the base metal. For example, if you're welding stainless steel, you'll need to use electrodes specifically designed for stainless steel. Using the wrong electrode can result in poor weld quality, such as cracking or corrosion.
Weld Joint Design
The design of the weld joint also plays a role in electrode selection. If you're welding a butt joint, a different electrode may be more suitable compared to a lap joint. The electrode needs to be able to penetrate the joint properly and create a strong bond. For instance, a deep - penetrating electrode like E6010 may be better for a thick butt joint, while a more forgiving electrode like E6013 may work well for a lap joint.
Welding Position
The position in which you're welding is another factor. Welding in a flat position is generally easier than welding in a vertical or overhead position. Some electrodes are better suited for certain positions. For example, E7018 electrodes are more difficult to use in an overhead position compared to E6013 electrodes. You need to choose an electrode that allows you to maintain a stable arc and control the molten metal in the desired welding position.
Conclusion
In conclusion, there are several welding electrodes that are suitable for AC welding, each with its own unique properties and applications. Whether you're a beginner or an experienced welder, choosing the right electrode is crucial for achieving high - quality welds. E6013 electrodes are great for beginners and light - duty applications, while E7018 electrodes are ideal for high - strength structural welding. E6010 electrodes provide deep penetration for thick materials. And don't forget about the specialized electrodes and accessories like the Spot Welding Curved Electrode, Electrode Grip, and Resistance Welding Electrode Arm, which can enhance your welding experience.
If you're in the market for welding electrodes for AC welding or any other welding needs, I'm here to help. As a welding electrode supplier, I can offer you a wide range of high - quality electrodes and accessories at competitive prices. Whether you have a small DIY project or a large industrial application, I can provide you with the right products to get the job done. So, don't hesitate to reach out and start a conversation about your welding requirements. Let's work together to find the perfect solution for your welding projects.
References
- Welding Handbook, American Welding Society
- Welding: Principles and Applications, Larry Jeffus
