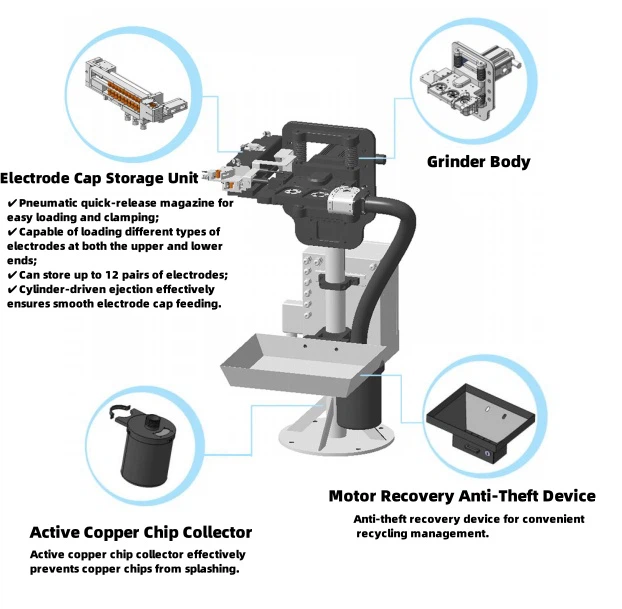

This Servo Tip Dressing And Changing Combination Device supports external communication interfaces including a hard I/O port and various bus interfaces (configurable according to site requirements).
It uses carbide coated blades, enabling high-speed regrinding and simultaneous regrinding of the electrode caps on both the upper and lower motors of the spot welding clamp, resulting in concentric and perfectly aligned electrode end faces.
It features automatic electrode cap removal, automatic electrode cap feeding and installation, and an automatic copper collector, ensuring a clean and aesthetically pleasing work environment.
Key System Features
High-precision
servo grinding
Fully automated cap changing process
Intelligent lifespan
management
Improved
welding quality
Reduced
overall costs
Compatibility
and integration
Technical Specifications
| Specification | Value |
|---|---|
| Model | HFDH-003 / HFDH-003H / HFDH-003L |
| Rated Input Power | 1.3 KW |
| Power Supply | Single-phase AC 220V ±10% |
| Frequency | 50Hz ±2% |
| Earthing/Grounding Method | TH-S |
| Phase Current | ≤ 10A |
| Cap Removal Speed | 20-120 rpm (adjustable) |
| Tip Dressing Speed | 300-500 rpm |
| Cap Change Time | 22 s |
| Electrode Cap Diameter | 13-20 mm |
| Torque | 30 N.m |
| Magazine Capacity (Electrode Caps) | 12 pairs (upper & lower combined) |

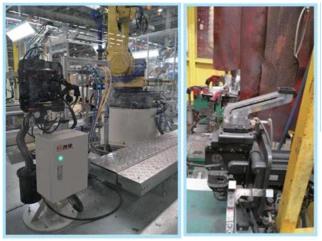

Application areas
Automobile manufacturing
refrigerator/air conditioner housing
battery tray
welding
metal furniture manufacturing
Product Configuration Introduction
- Servo motor drive (220V) with adjustable dressing speed from 0 to 650 RPM to complete both tip dressing and cap changing.
- Equipped with a stable five-claw removal mechanism and a standard pneumatic magazine compatible with electrode caps from φ13 to φ20.
- Both dressing and cap changing can be completed within 30 seconds for high efficiency.
- Configured with functional feedback systems to ensure reliable dressing and changing.
- Features external ports to meet different on-site communication requirements.
- Standard ports: 24VDC PNP type 10;
- Optional ports: Devicenet, Profinet, Profibus, etc.
