Transformer

Welding transformers operate based on the principle of electromagnetic induction. They convert high-voltage, low-current input into low-voltage, high-current output, which generates resistance heat at the workpiece contact points, thereby achieving material fusion.

During welding, current flows through the workpiece contact surface. Due to the contact resistance, instantaneous high temperatures are generated, causing the material to locally melt and form a strong weld joint.

Welding transformers not only provide the current required for welding, but also directly affect:

• Weld strength and consistency
• Stability of the welding process
• Energy efficiency

A stable transformer can effectively reduce welding defects and improve overall production efficiency.

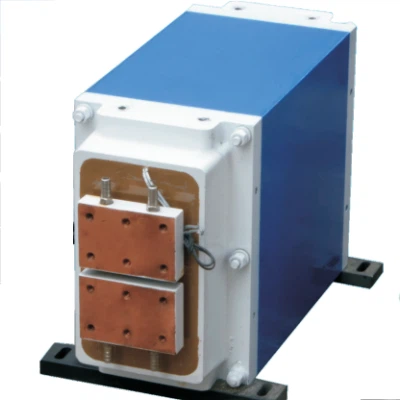

DC Welding Transformer vs. AC Welding Transformer

DC welding transformers offer more stable output current and higher weld consistency, making them suitable for applications requiring high welding quality. AC welding transformers have a simpler structure and lower cost, suitable for general welding needs.

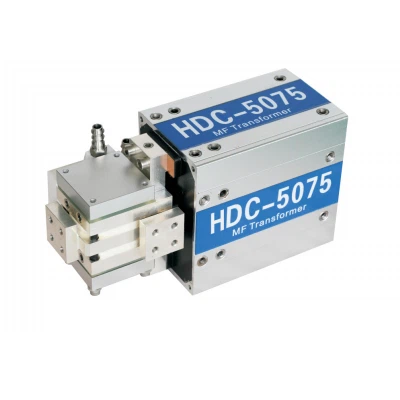

Medium Frequency DC vs. Secondary Rectifier Transformers

Medium frequency DC systems offer higher control precision and more concentrated energy output. Secondary rectifier transformers are more compact in structure, suitable for integration into specific equipment.

Features of Flash Butt Welding Transformers

Flash butt welding transformers possess instantaneous high current output capability, suitable for butt welding of large cross-section metal workpieces, and widely used in processes such as steel joining.

Summary of Applicable Scenarios for Different Transformer Types

Different types of transformers are suitable for different working conditions, such as thin plate welding, thick plate welding, high-strength materials, and automated production lines. The appropriate type should be selected based on specific requirements.

When selecting a welding transformer, it's crucial to consider factors such as welding process, material properties, production requirements, and power supply conditions, rather than focusing solely on a single parameter.

Welding Process and Material Factors

Different welding processes (spot welding, projection welding, butt welding, etc.) have different requirements for current output characteristics. Simultaneously, the conductivity and thickness of the material directly affect transformer selection.

Power and Power Supply Matching

The transformer capacity needs to match the actual welding requirements, satisfying the maximum welding current demand while avoiding increased costs due to over-configuration. The factory's power supply conditions must also be considered to ensure stable equipment operation.

Equipment Structure and Application

Select the appropriate structure based on the production method, such as stationary equipment or an automated integrated system. Future expansion needs should also be considered to enhance the long-term value of the equipment.

Stability and Maintenance Factors

A high-quality welding transformer should possess stable electrical performance and excellent heat dissipation design, and be easy to maintain to ensure long-term reliable operation.

Based on this information, Haifei Intelligent Equipment Co., Ltd. can recommend cost-effective and stable welding transformer solutions for you.

We're well-known as one of the leading transformer manufacturers and suppliers in China. Please rest assured to buy high quality transformer made in China here from our factory. For price consultation, contact us.
