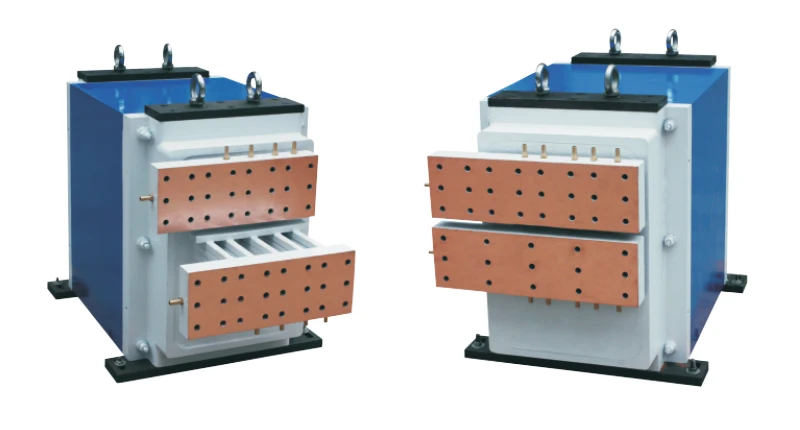

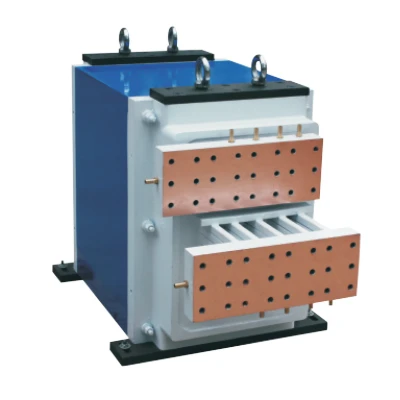

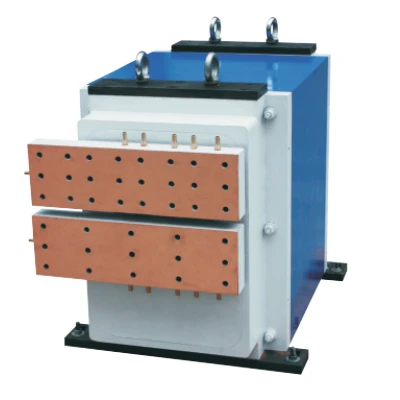

The Flash Butt Welding Transformer is the core power component of flash butt welding machines. It efficiently converts high-voltage AC into the low-voltage, high-current power required for flash heating and upset welding of metal end faces. Designed for heavy-duty industrial use, it ensures a stable "flash + upset" process for high-strength joints.
Certifications
40+ Patents and 2 National Software Copyrights, 10,000㎡ Factory with 100+ skilled employees.
Our Partners
We have served over 5,000+ customers worldwide, and our long-term partners include Tesla, BYD, and Siemens.Over 50+ Fortune 500 companies.
HAIFEI Customer Site
What are the core selling points of Flash Butt Welding Transformer?
Ultra-High Current Output
Delivers a massive instantaneous current ranging from 20kA to 200kA+ to handle large cross-section workpieces.
Heavy-Duty Low Impedance Design
Minimizes energy loss and maximizes heat concentration for superior welding efficiency.
Superior Impact Resistance
Specially reinforced structure to withstand violent current fluctuations and transient short circuits during the flash stage.
Advanced Forced Water Cooling
Equipped with a multi-channel cooling system for windings and busbars, ensuring 24/7 continuous operation without power degradation.
Feature Highlights & Scenarios
Stable Flash Control
Prevents burn-through by maintaining precise voltage during unstable flash phases.
High-Permeability Core
Uses laminated silicon steel sheets to reduce eddy current loss and boost energy conversion.
Industrial Reliability
Features Class F/H insulation, specifically built for high-load automated production lines.
|
MODEL |
Rate Power |
Primary Power |
Duty Cycle |
Rated Input Current |
Secondary No-load Voltage |
|
DH-200 |
200 KVA |
380 KVA 50HZ |
50% |
526A |
4V - 10V |
|
DH-400 |
400 KVA |
380 KVA 50HZ |
50% |
1053 A |
5.5V - 9.5V |
|
DH-600 |
600 KVA |
380 KVA 50HZ |
50% |
1578 A |
5.8V - 11.8V |
|
DH-800 |
800 KVA |
380 KVA 50HZ |
50% |
2105 A |
6.3V - 12.6V |
|
DH-1000 |
1000 KVA |
380 KVA 50HZ |
50% |
2631 A |
6.8V - 13.6V |
|
DH-1250 |
1250 KVA |
380 KVA 50HZ |
50% |
3289 A |
7.3V - 14.6V |
Application Areas
Automotive Manufacturing
Wheel rim welding, axle housing, and structural components.
Steel Industry
Rebar butt welding, wire rod connection, and pipe splicing.
Railway & Power
Conductor connections and catenary components.
General Manufacturing
Tooling, chains, and various mechanical parts.
Customer Benefits
Eliminate Welding Defects
Solves issues like weak welds or unstable flashing caused by current drops, significantly increasing the yield rate.
Reduce Operational Costs
The low-impedance design reduces electricity consumption, while the rugged build minimizes downtime for maintenance.
Boost Production Capacity
High-efficiency cooling allows the machine to run at full load for extended periods to meet tight deadlines.
FAQ
01.Why is a specialized transformer required for flash butt welding?
02.How do I determine if the transformer capacity is sufficient?
03.Does the system require rectification (DC output)?
04.What materials can be welded with this Flash Butt Welding Transformer?
05.Is water cooling mandatory?
