Haifei provides robotic welding integration for spot, projection, seam and diffusion welding. We combine robots, welding machines, fixtures, material handling, controls and safety devices around each workpiece and production target.
Category
Flexible Projection Welding Line

Add To Inquiry
Send Inquiry
Description
Technical Parameters

Haifei provides robotic welding integration for manufacturers that need to automate spot welding, projection welding, seam welding or diffusion welding. Each system is developed around the customer's workpiece, weld positions, loading method, production target and inspection requirements.

A complete system can include the welding machine, industrial robot, fixtures, automatic feeding, conveyors, inspection and safety protection. Customers can send drawings or samples for process evaluation before the final configuration is confirmed.





Send Your Workpiece Drawing

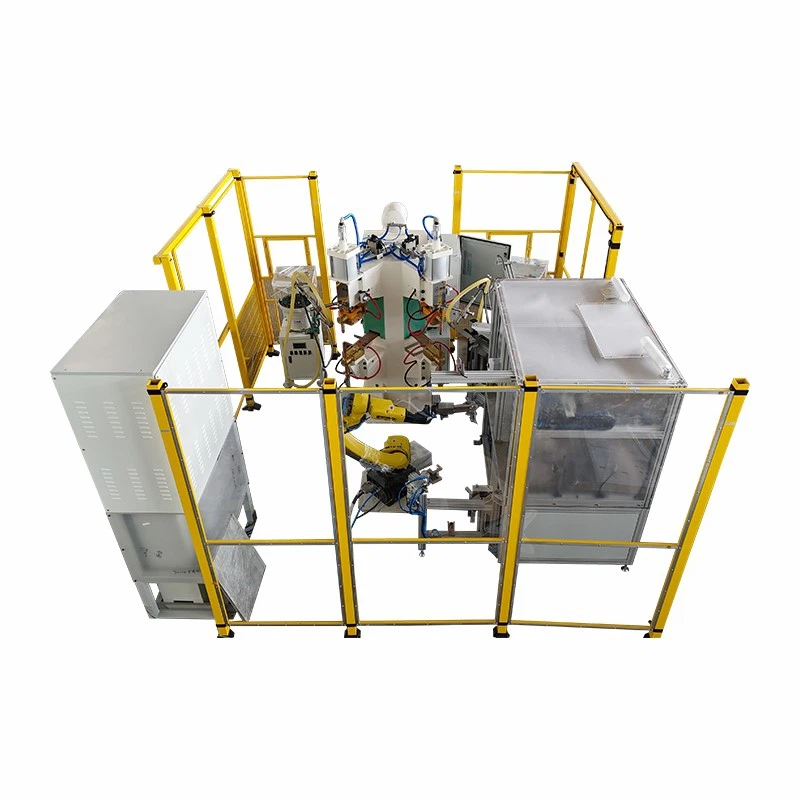

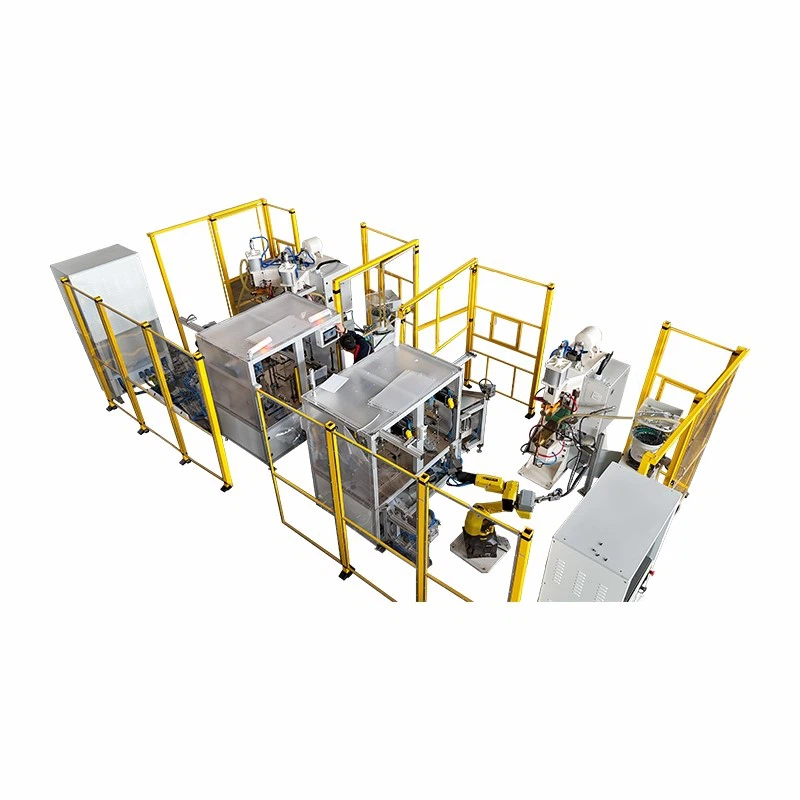

Robotic welding integration system by HAIFEI




System Information



Item Available Configuration
System type Robotic welding cell or automatic production line
Welding processes Spot, projection, seam and diffusion welding
Robot function Loading, unloading, positioning or carrying the welding tool
Workpiece feeding Manual, feeder, tray, conveyor or robot picking
Fixtures Designed according to the workpiece
Inspection Component detection and process monitoring as required
Control PLC and HMI coordinated control
Safety Guarding, interlocks, light curtains and emergency stops
Production output Confirmed according to the workpiece and welding cycle



The table describes the available integration scope rather than a fixed machine specification. The final system does not need to include every listed function.



Welding Processes We Integrate





Robotic Spot Welding

The robot can move the workpiece between fixed welding stations or carry a welding gun to several weld positions. It is suitable for stamped parts, automotive brackets, seat components and electrical assemblies with repeated weld points.

Electrode access, welding force, current, cooling and fixture positioning are reviewed together during system design.




Robotic Projection Welding

Projection welding systems are used for nuts, bolts, studs, contacts and stamped components. The cell can combine fastener feeding, workpiece loading, component detection, welding and unloading.

Different products can be evaluated with replaceable fixtures and stored welding programs.




Robotic Seam Welding

Robots can load, turn and unload products processed by a seam welding machine. Typical workpieces include fuel tanks, metal containers, housings and compressor components.

For sealed parts, the welding station can be connected to a leak-testing process when required.




Robotic Diffusion Welding

Robotic diffusion welding systems are used for laminated copper or aluminum flexible connectors. A production line can connect foil preparation, robot loading, diffusion welding, cooling and finished-part unloading.

The foil material, number of layers, terminal dimensions and welding process must be confirmed before the robot handling system is designed.





Main System Features



Workpiece-Specific Fixtures

The fixture is designed according to the product shape, weld locations and loading direction. Correct positioning is necessary because robot repeatability cannot compensate for an unstable or incorrectly located workpiece.

01

Flexible Material Handling

Depending on the component, the system can use manual loading, trays, conveyors, automatic feeders or robot picking. Irregular bulk parts may be evaluated for vision-guided handling.

02

Process and Component Inspection

Available checks may include workpiece presence, fastener presence, fixture position and selected welding parameters. Inspection functions are chosen according to the customer's acceptance requirements.

03

Product Changeover

A cell may process several similar products through replaceable fixtures, adjustable tooling and stored programs. Large differences in dimensions or weld positions may require separate stations.

04

Safety Protection

The system can include safety fencing, access doors, interlocks, light curtains and emergency stops. The final protection method is determined from the cell layout and operating sequence.

05

Typical Applications



Automotive Components

Robotic welding cells can be developed for nuts, bolts, stamped brackets, seat parts, structural wires and shock absorber components. Automatic feeding and multi-position welding can be combined where the product and output justify it.

01

Switchgear and Circuit Breakers

Robots can handle copper busbars, contacts, terminals and current-path assemblies between loading, welding and inspection stations.

02

Copper and Aluminum Flexible Connectors

Flexible connector lines can combine material preparation, diffusion welding, cooling and unloading. The gripper and support fixture are designed to prevent foil movement during transfer.

03

Tanks and Metal Containers

Robot-assisted seam welding can be used for loading, positioning and unloading fuel tanks, housings and other sheet-metal containers.

04

Compressors and Appliance Parts

Customized cells can process compressor shells, brackets, terminals and appliance sheet-metal components requiring repeated welding operations.

05





Why Work with Haifei?





Robotic Welding Integration

Haifei manufactures resistance welding machines, diffusion welding equipment and customized welding automation. This allows the welding process, machine, fixture and robot handling to be evaluated together.

When comparing welding automation companies, customers should check whether the supplier can verify the welding process and build the required tooling, rather than only program the robot.

Haifei supports:

  • Workpiece and drawing review
  • Sample welding
  • Fixture and electrode design
  • Robot handling integration
  • Factory acceptance testing
  • Operation and maintenance training
  • Remote technical support



Contact Our Engineer





FAQ About Robotic Welding Integration

Q: What is robotic welding integration?

A: Robotic welding integration combines a robot with welding equipment, fixtures, handling, controls, inspection and safety devices. The complete system is designed for a specific workpiece and production process.

Q: Which welding processes can Haifei automate?

A: Haifei mainly integrates resistance spot welding, projection welding, seam welding and diffusion welding. The suitable process depends on the workpiece material and joint structure.

Q: Can Haifei automate an existing manual process?

A: Yes. Send the workpiece drawing, a video of the current process, weld positions and required output. HAIFEI will evaluate which operations are suitable for automation.

Q: Can one robotic welding cell process different products?

A: Similar products may share one cell through replaceable fixtures and stored programs. Feasibility depends on differences in product size, loading method and weld positions.

Q: Can existing welding equipment be connected to a robot?

A: It can be evaluated. The existing machine's welding capacity, control interface, safety circuit and operating condition must be checked before integration is confirmed.

Q: How is the welding result checked before delivery?

A: Customers can provide samples and acceptance requirements. During factory testing, HAIFEI checks the agreed welding result, operating sequence, cycle time, alarms and safety functions.

Q: What is the difference between a robot supplier and a welding system integrator?

A: A robot supplier provides the robot and controller. A welding system integrator combines the robot with the welding process, fixtures, handling, inspection and safety equipment.
